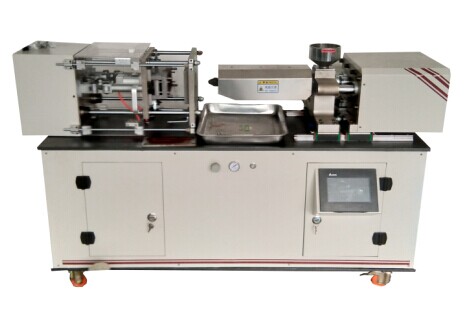

Micro injection molding machine Detailed information:
Product Introduction:After microform and promotion about this machine, it has small size and strong mobility, which is apply to the class teaching and the making of small sample. This product include the mould open and die assembly parts, plastic injection parts, machine body, heating system, control system and material adding device. It has simple structure, convenient operation and no noisy, no pollution..
Specification:
Main technical parameters |
Specifications |
Feeding torque |
25.4N.m |
pressure |
≥0.8MPa |
Displacement resolution |
0. 1mm |
Displacement stroke |
0-85mm |
Feeding speed |
1-130rpm |
The opening stroke |
82mm(excluding mould) |
Injection force(about) |
1800kg |
Injection quantity(about) |
15g |
Maximum temperature |
One/Two360℃Three180℃ |
Power / full load power / current |
AC 220v 50/60Hz / 2200W 10A |
Screw diameter |
25mm |
Column spacing |
210*196mm |
Outline dimension (about) |
580mm×580(Floor type850)mm×1700mm |
Quality (about) |
300(Floor type380kg)Kg |
If you are interested in Micro injection molding machine, want to know more detailed product information, fill in the table below the direct contact with the manufacturers: |
