Izod impact tester enerygy format
Click：947 Release time：2017-08-19

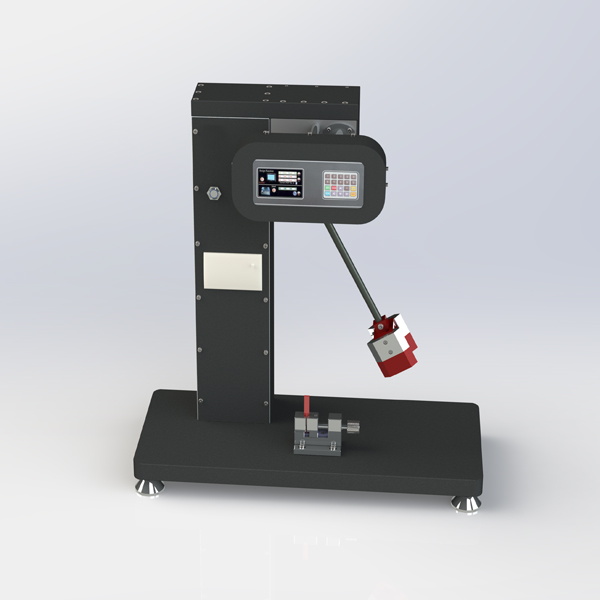

         Izod Impact Tester

Introduction:

Usage: Test the impact toughness of the non-metallic materials.

Suitable material:  plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials.

Applicable zone: scientific research institutes, universities and non-metallic material manufacturers as the common quality test equipment.

Performance standards

ISO180—2000   Determination of Plastics - Hard Materials Izod Impact Strength

GB/T1843—2008   Rigid Plastic Izod Impact Test Method

JB/T8761—1998    Plastics Izod Impact Testing Machine

ASTM D256-2010 Test Methods for Measuring the Impact Strength of the Plastic IZOD Pendulum



β E' β E' β E' β E' β E'
0 5.51 31 5.08 62 3.94 93 2.40 124 0.91
1 5.51 32 5.06 63 3.89 94 2.35 125 0.86
2 5.50 33 5.03 64 3.85 95 2.30 126 0.82
3 5.50 34 5.00 65 3.80 96 2.25 127 0.78
4 5.50 35 4.97 66 3.76 97 2.20 128 0.74
5 5.49 36 4.94 67 3.71 98 2.14 129 0.70
6 5.49 37 4.91 68 3.66 99 2.09 130 0.66
7 5.48 38 4.88 69 3.61 100 2.04 131 0.62
8 5.48 39 4.85 70 3.56 101 1.99 132 0.58
9 5.47 40 4.82 71 3.52 102 1.94 133 0.54
10 5.46 41 4.78 72 3.47 103 1.89 134 0.51
11 5.45 42 4.75 73 3.42 104 1.84 135 0.47
12 5.44 43 4.71 74 3.37 105 1.79 136 0.43
13 5.43 44 4.68 75 3.32 106 1.74 137 0.40
14 5.42 45 4.64 76 3.27 107 1.69 138 0.36
15 5.41 46 4.60 77 3.22 108 1.64 139 0.33
16 5.39 47 4.57 78 3.17 109 1.59 140 0.29
17 5.38 48 4.53 79 3.12 110 1.55 141 0.26
18 5.36 49 4.49 80 3.07 111 1.50 142 0.23
19 5.34 50 4.45 81 3.02 112 1.45 143 0.20
20 5.33 51 4.41 82 2.97 113 1.40 144 0.17
21 5.31 52 4.37 83 2.91 114 1.36 145 0.14
22 5.29 53 4.33 84 2.86 115 1.31 146 0.11
23 5.27 54 4.29 85 2.81 116 1.26 147 0.08
24 5.25 55 4.25 86 2.76 117 1.22 148 0.05
25 5.23 56 4.21 87 2.71 118 1.17 149 0.03
26 5.21 57 4.16 88 2.66 119 1.12 150 0.00
27 5.18 58 4.12 89 2.61 120 1.08 　 　
28 5.16 59 4.07 90 2.56 121 1.04 　 　
29 5.14 60 4.03 91 2.50 122 0.99 　 　
30 5.11 61 3.99 92 2.45 123 0.95
