ring crush strength testing machine Detailed information:

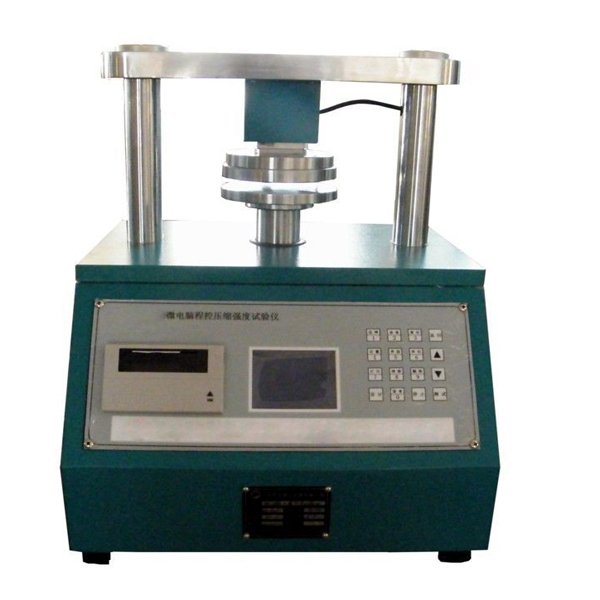

Corrugated board ring crush strength testing machine
Product Introduction of ring crush strength testing machine :
Corrugated board ring crush strength testing machine is used to test the compression strength of corrugated paperand kraft paper sample in vertical direction,cooperate with various accessories, And to test the vertical compressive strength of test board, bonding strengthand flat compression strength.
Technical Parameter of ring crush strength testing machine :
Specimen |
76x63mm |
Capacity |
0-200Kg |
Minimum read value |
1/10000 |
Accuracy |
±1% |
Testing Speed |
12.7mm/min |
Jig |
Width 25mm, Depth 12mm |
Dimensions(W x D x H) |
50x25x37cm |
Motor |
1/8HP |
Weight |
13kg |
Printer |
A needle dot printer |
With a set of extrusion fixture,edge pressure clamp.
