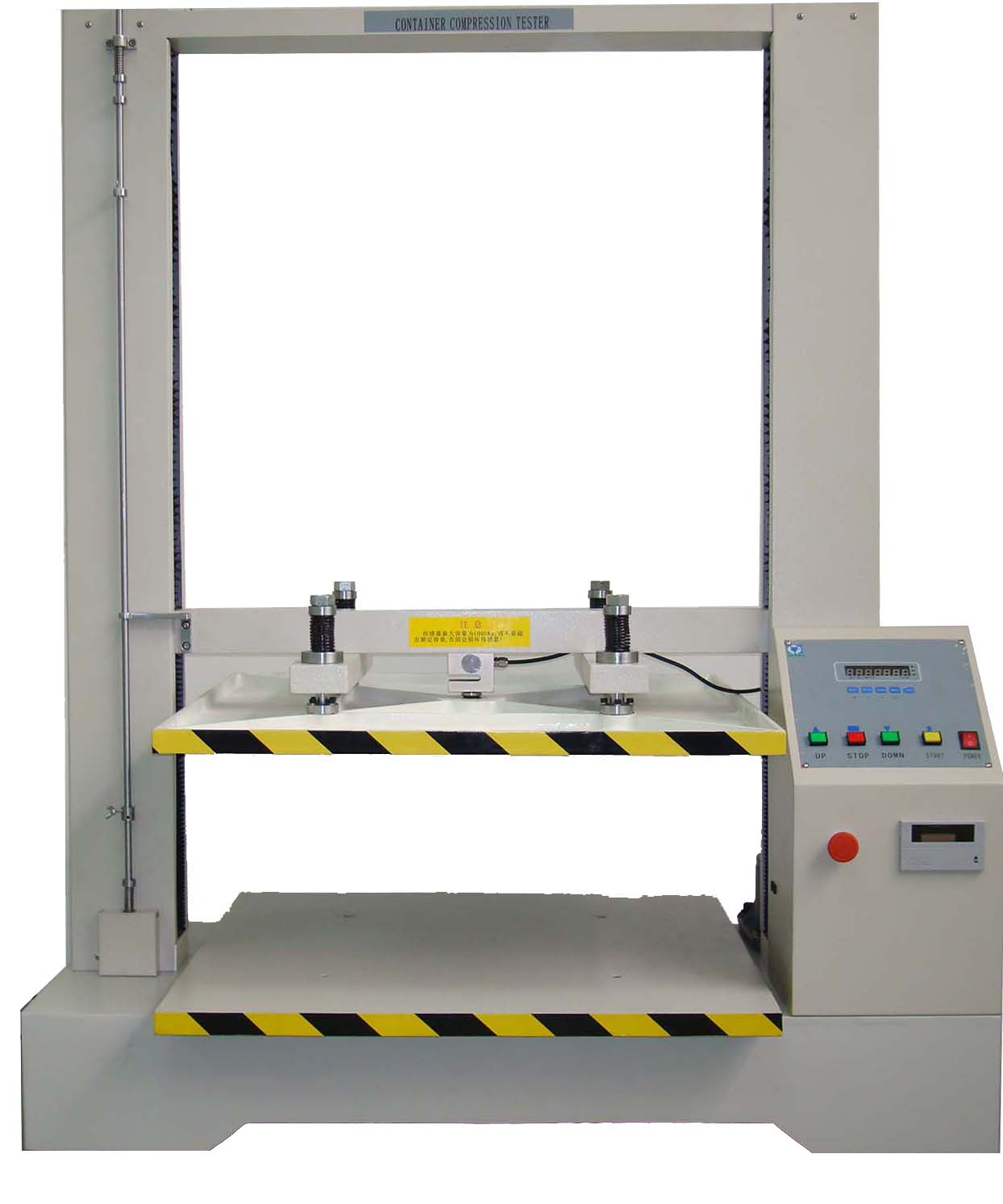

Computer ControCarton Box Compression Testing machine

Product introduction:

    This Carton Box Compression Testing machine  is designed for testing the compressive strength of the packaging containers to avoid product deformation, damage and other adverse phenomenon in the product handling, stacking, storage and transportation caused by insufficient strength of the packaging container.

Technical parameters

    The Carton Box Compression Testing machine is used to test the compressive strength of the product. It is equipped with high-precision load cell sensor and LED display.

  Detailed parameters:

    Capacity:2000/1000kg

    Unit:kg,N,1b can be switched according to the need of the user.

    Resolution:1/10,000

    Accuracy:≤±1%

    Testing space:1000*1000*1000mm(or specifically ordered)

    Stacking test: can be used for static load test (stacking functions)

    Compression speed standard:10mm/min

    Print function:Mini printer can automatically print the relevant test data.

    Weight:about 1000kg

    Volume(W*D*H):1500*1200*1500mm

    Supply voltage:AC 220V,2.7A
