Current location:Home > Products Plastics Testing Machine > Tensile Tester > universal tensile machine

Name:universal tensile machine


Description:Single-column Servo universal tensile machine It is widely used in material tests and analysis of building materials,aerospace, machinery manufacturing

universal tensile machine Detailed information:

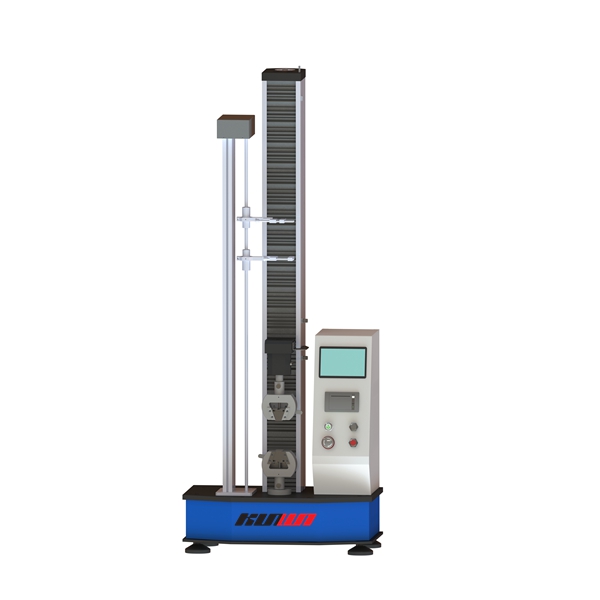

Single-column Servo universal tensile testing machine


Servo universal tensile testing machine Product introduction:

Single-column Servo Universal Testing Machine It is widely used in material tests and analysis of building materials,aerospace, machinery manufacturing, wire and cable, rubber, plastics, textiles, home appliances and other industries, which now is ideal test equipment of scientific research institutions, colleges, industrial and mining enterprises, technical supervision, inspection and arbitration department.

Servo universal tensile testing machine The main technical parameters:

universal tensile machine Load

1, 5, 10, 20, 50, 100, 200, 500Kg

Force resolution


Force accuracy


Power magnifying multiples

seven segment

Displacement resolution


Displacement accuracy

≤0.3% (Power units : Kg, N, KN, g, lb; displacement unit: mm, cm, inch)

Metal extensometer resolution

1/1000(need negotiation)

Metal extensometer accuracy


Large deformation extensometer

±1mm(need negotiation)

Speed range

0.001mm / min ~ 1000mm / min (special speed testing can also be customized according to customer requirements)

universal tensile machine Walking space

1000mm (Holder is included and special test space can also be customized according to customer requirements)

Test Width

400mm (special test width can be customized according to customer requirements)

Power supply

∮220V 50HZ or using 110V power supply according to customer requirements

universal tensile machine Machine Size

about 500 × 500 × 1800 mm (L × W × H)

Machine weight

about 250KG
