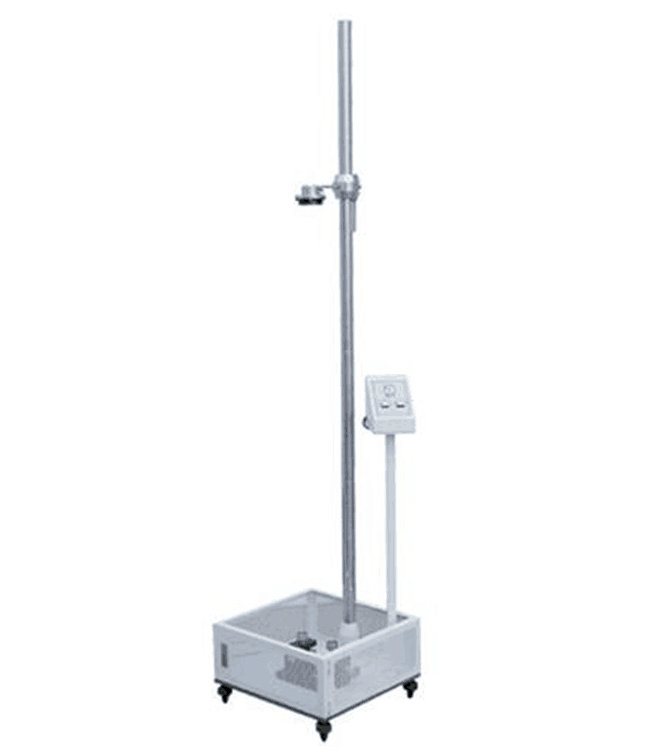

Drop Ball Impact Tester Detailed information:
Product Name: drop ball impact tester
Product Usage of Drop Ball Impact Tester :
drop ball impact tester is take the plastic, building materials, ceramic, painting materials, Acrylic and glass fiber as the test sample, let the steel ball with stipulated weight drop freely from a certain height to strike the sample with theInstantaneous strength, and judge the quality and know the needed impact testing machine for damage the materials. Meanwhile, this machine can be used to compare by testing the same materials and same specifications to know the quality of materials, which can meet the standard of JIS-K6745,A5430.
Technical parameter of Drop Ball Impact Tester :
1.Maximum impact height: 2m or assigned
2. Drop height gauge:A minimum instruction is1mm.
3,Steel ball specifications: steel ball specifications
No. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
(Customize )weight |
112 |
198 |
225g |
357 |
533 |
1041 |
2280 |
2869 |
4,Table dimensions:500x500x2100mm(W x D x H)
5,Table weight: 20kg
6,Power: 220V,5A or assigned.
