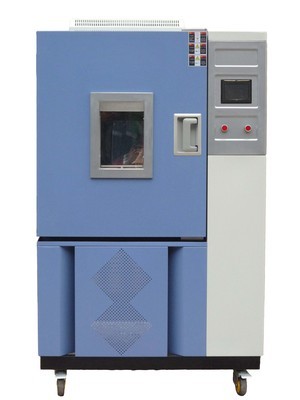

Name：Ozone Aging Test Chamber
Model：KL-OA
Description：The ozone aging cabinet measurer is applicable to test rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation jacket, etc.
Ozone Aging Test Chamber Detailed information：
Product description
1. The ozone aging cabinet measurer is applicable to test rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation jacket, etc.
2. Exposed to a airtight constant-humility testing chamber filled with air of static tensile deformation, samples will be tested to a scheduled time until cracks appear on its surface or other property changes to define the ozone resistance of rubber.
(Sizes customized)
Standards met: JIS K 6259,ASTM1149,ISO1431, GB/T7762,GB/T13642
Parameters
|
type |
NFC100 |
NHC225 |
NHC500 |
NHC010 |
|
|
Working camber size D*W*H |
450*450*500 |
500*600*750 |
700*800*900 |
1000*1000*1000 |
|
|
Performance indicators |
Temperature range |
0~70℃ |
|||
|
Humidity range |
≥65R.H |
||||
|
Ozone concentration |
0~300PPm |
||||
|
Temperature fluctuation |
±0.5℃ |
||||
|
Operation control system |
Test device |
Dynamic and static (optional) |
|||
|
sample holder rotation |
360°rotation sample holder,(1cycle/min) |
||||
|
Gas flow rate |
12~16mm/s |
||||
|
Temperature controller |
Imported LED digital display P,I, D+S, S, R. Microcomputer integrated controller |
||||
|
Time controller |
High-precision controller by hour,minute,second |
||||
|
Ozone concentration analysis |
Imported concentration analysis regulator, 4~60mAoutput,RS232 communication port |
||||
|
Ozone generator |
Silent discharge tube |
||||
|
Security |
Leakage, short circuit, over-temperature, motor overheating, over-current protection |
||||
