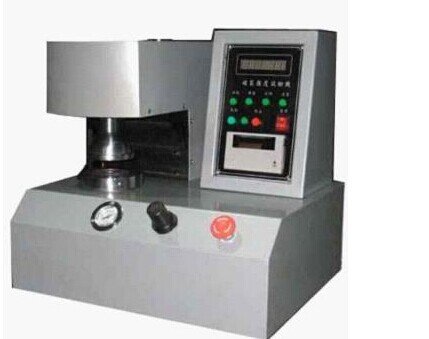

Paperboards burst strength test machine Detailed information:
What is burst strength?Bursting strength of corrugated board refers to the max vertical pressure, marked with kPa, on sample
surface of a unit area under certain specified conditions. It is considered the total bursting strength value of each layer combined, widely recognized as a important performance indicator.
Features of the paperboards burst strength test machine
1. Operations of data display,pressure increasing,pressure decreasing etc are achieved by control
system automatically;
2. Judgement of burst strength,pressure decreasing,test data storage are automatically controlled, free
of human factors;
3.Accurate test data, less than 0.3kgf difference between max and min test value of aluminum slice,easy
operation when compared with manual bursting strength test machine.
4. Pressure value are collected by built-in micro computer featured by high speed calculation. The max
burststrength value will be recorded and print out automatically with resolution 100 times higher than that
of dial indicator.
Specifications:
Product description |
Fully automatic paperboards burst strength test machine |
Capacity |
250-5600KP |
Hydraulic speed |
170±15ML/min |
Hydraulic oil |
85% glycerol, 15% distilled water |
Burst strength indicator |
LED digital display |
Force units |
kgf,KPA,Ibf |
Extra function |
Micro printer |
Dimension |
(W×D×H) 42×43×40cm |
Weight |
63kg |
Power supply |
AC220V,50/60Hz |
Total power |
1/4HP |
If you are interested in Paperboards burst strength test machine, want to know more detailed product information, fill in the table below the direct contact with the manufacturers: |
