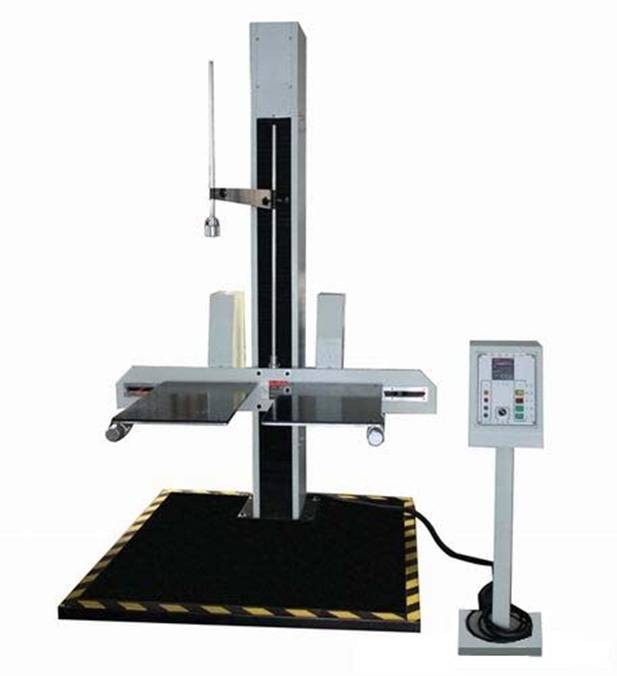

Name：Carton Box Double Wing Drop Tester
Model：
Description：It can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.
Carton Box Double Wing Drop Tester Detailed information：
Carton Double/Single Wing Drop tester
It can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.
GB4757.5-84 JISZ0202-87 ISO2248-1972(E)
Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
Specification:
Drop height: 400~1500mm
Max Weight of specimen: 60kg
Max size of sample: (L×W×H)800×1000×800mm
Test space: 800mm wide
Height adjustment: electric 1/3HP
Height Display modes: digital
Drop method: Electromagnetic control
Fitting modes: Rhombohedrons, Angle, face
Rate of work: 1.85KWA
Size: 85×100×220cm
Weight: 500kg
Power: 3phase, 380V/50HZ
