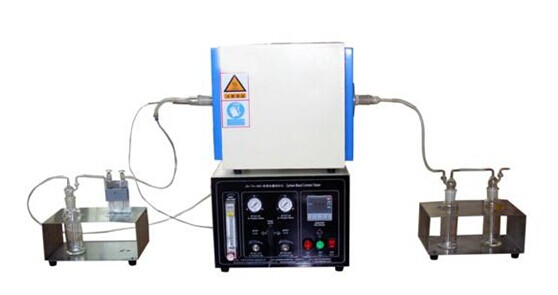

Name:Carton black content tester

Model:KL-JN

Description:High Suitable Polyethylene Carbon Black Content Tester suitable for Carbon black content test device for GB/T2951.41-2008 the cable

Carton black content tester Detailed information:



Product Instruction:

High Suitable Polyethylene Carbon Black Content Tester  suitable for  Carbon black content test device for GB/T2951.41-2008 the cable and the cable insulation and sheath material test  method, section 41, polyethylene and polypropylene mixture dedicated test methods - polyethylene in carbon black and mineral filler - direct combustion method for determination of the amount of "standard, used in PE or PVC cable need to be winding test at low temperature the occasion.Equivalent IEC60811-4-1:4 standard;YD/T837.3-1996 "copper core polyolefin insulation aluminous model

One of the effective length of tube furnace and tube diameter: 400 x Φ 40 m

Quartz tube diameter and length: 2 Φ 30 x 500 mm

Three nitrogen gas (air) flow: 0 ~ 3 l/min is adjustable

4 flow oxygen (air) : 0 ~ 3 l/min is adjustable

5 furnace output temperature: 0-1000 ℃ (heating) according to the standard rate

Heating power input: 220 v 3 kw

Three, carbon black content meter main parts:

The furnace tube 1

Quartz tube 2 -

Article 2 K type thermocouple

Combustion boat 100 only

Tools: 1 set (one to each of the hooks, tweezers, rubber tube 1 meter and 3 meters each, rubber plug and glass tube (2 sets)

And nitrogen, oxygen and carbon black tester needs matching decompression table, the user should bring along their own
