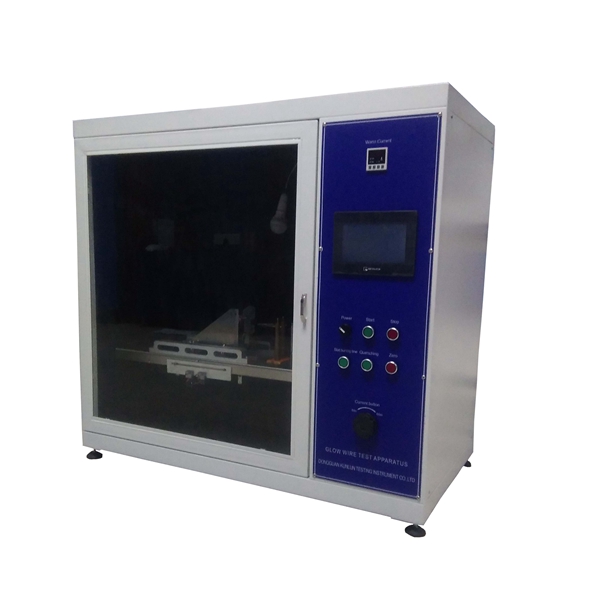

Name：Glow wire test apparatus

Model：

Description：Glow wire test apparatus is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.

Glow wire test apparatus Detailed information：

Glow wire testing machine

1.Glow wire test apparatus Application:



The Glow wire test apparatus is designed to carry out fire hazard testing on electro technical products in accordance with the provisions of International standards.

The glow wire test machine control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.

A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.



2.Glow wire test apparatusTechnical Parameters:








Glow Wire

Ø 4mm±0.04mmNi/Cr(80/20), standard

Temperature Range

500 ~ 1000 °C± 2 °C continuous adjustable

Thermocouple

0.5 or 1mm Nickel chromium armor impact thermocouple

Searing Time

30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, preset table)

Light-off Time

0-999.9 s ± 0.1 s, automatic recording, manual time out

Glow wire testing machine fire out time

0-999.9 s ± 0.1 s, automatic recording, manual time out

Ironing into depth

7mm ± 0.5 mm

Sample pressure

1N ± 0.2 N

Test process

automatic control, independent convulsions

Chamber

≥0.5m；  0.75； 1

Glow wire test machine control

Using single chip microcomputer + touch screen control

Consult standard

GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A

Power Supply

800VA ,220V±10%, 48-60Hz

Display panel language

Glow wire test apparatus  is All in English (adjustable)
