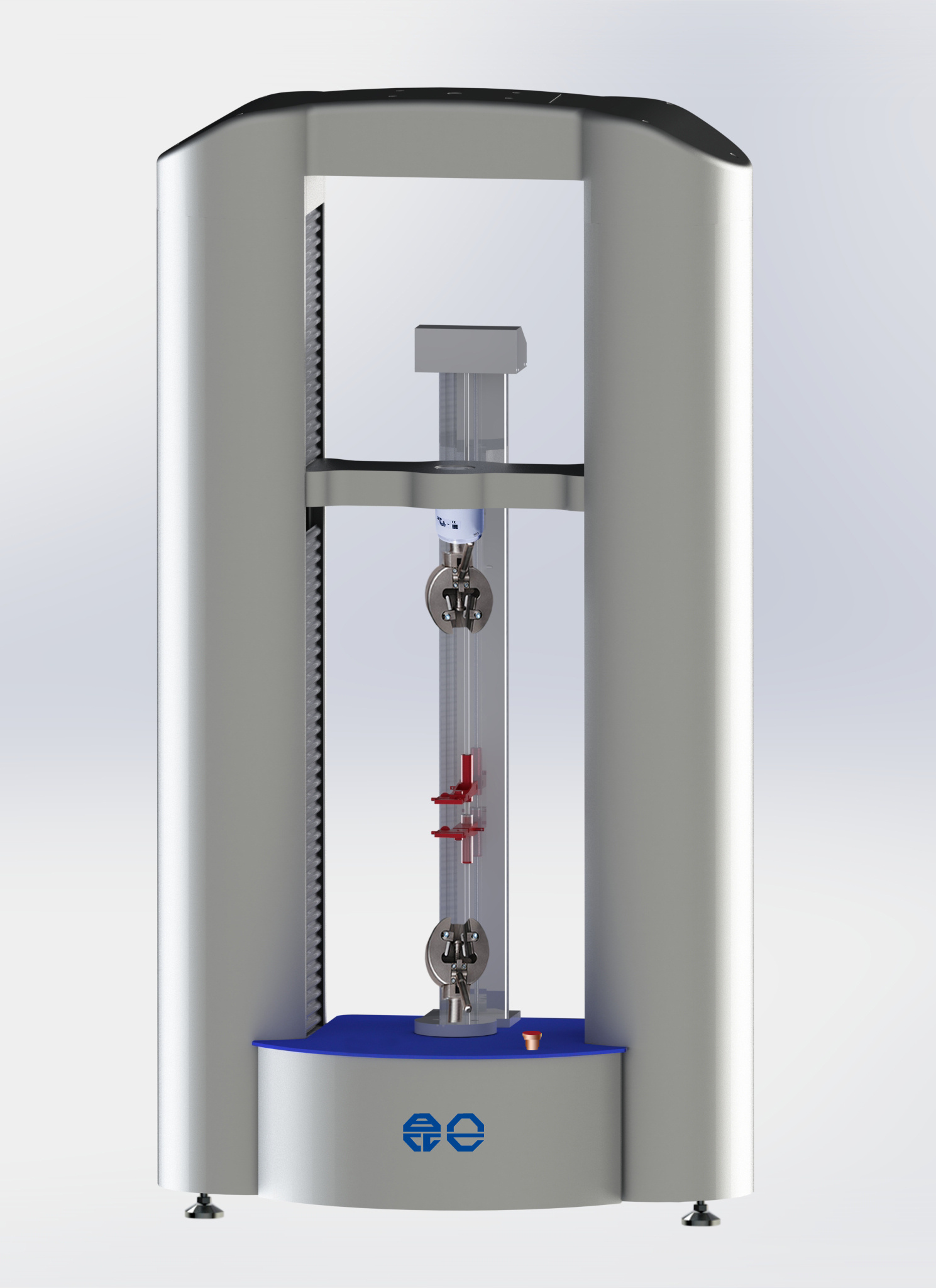

Universal Material Testing Machine

Universal material testing machinebest servo motor－ American Kollmorgen I.D Goldline series servo motor; Germany HBM force sensor; imported precision grinding screw; NEUGART planet speed reducer; Goodyear synchronous pulleys; Ultra high strength rack. All the relatively advanced technologies are gathered together and make it perfect. High-end elegant molding, satisfying your demanding, personalized needs by providing customized software according customers’ requirements including operation interface and test methods.

Meeting standards: ISO, ASTM, EN, GB, DIN, JIS, ANSI, CSA, BS, AATCC, TAPPI, UL, VDE, IEC, CNS,etc.

Main technical parameters:

A. Load cell: 1, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000Kg

B．Force resolution: 1/1000000

C．Force accuracy:  ≤0.5％

D．Power magnifying multiples: stepless

E. Displacement resolution: 1/1000

F. Displacement Accuracy:  ≤0.1%

Power units : Kg, N, KN, g, lb; displacement unit: mm, cm, inch

G. Metal extensometer resolution: 1/1000(need negotiation)

H. Metal extensometer accuracy:  ≤0.5％

I．Large deformation extensometer:  ±0.001mm(need negotiation)

J. Speed range: 0.001mm / min ~ 1000mm / min (special speed testing can also be customized according to customer requirements)

K. Walking space: 1400mm (Holder is included and special test space can also be customized according to customer requirements)

L. Test Width: 500mm (special test width can be customized according to customer requirements)

M. Power supply:  ∮220V 50HZ or using 110V power supply according to customer requirements

O. Machine Size: about 500  × 500  × 1800 mm (L × W × H)

P. Machine weight: about 300~1500KG

The warranty of this machine is free for five years.
