izod charpy impact testing machine Detailed information:

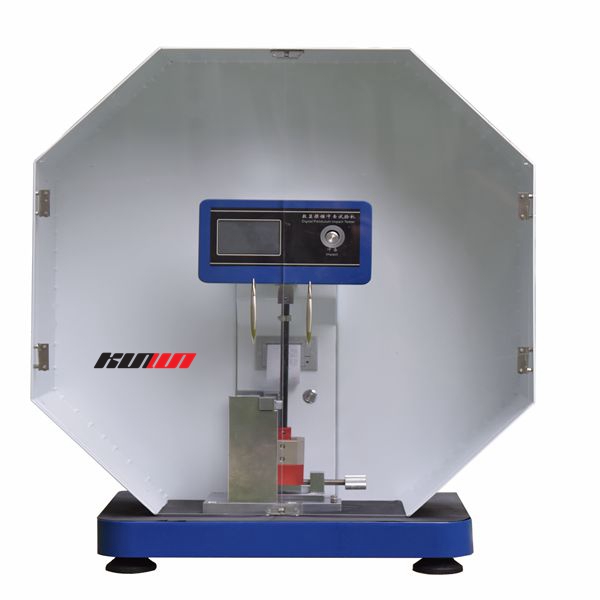

Izod charpy impact testing machine
Product introduction:
This Izod charpy impact testing machine is advanced functional combination of charpy impact testing machine and izod impact testing machine. You don’t need to remove jig and fixture. It is easy and convenient to switch from one kind of tester to the other kind. It is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials.
Product standard:
Technical parameter:
Name |
|
Digital izod charpy impact testing machine |
||||
Article No. |
XJL-5/5.5D |
XJL-50D |
|||
capacity |
Izod |
2.75J, 5.5J |
Izod |
11J, 22J |
|
charpy |
1J,2J,4J,5J |
charpy |
7.5J,25J,50J |
||
Test angle |
150° |
||||
Impact speed |
3.5m/s, 2.9m/s |
3.5m/s, 3.8m/s |
|||
Effective length of pendulum |
335mm, 221mm |
335mm, 380mm |
|||
supporting distance |
60mm, 70mm, 95mm |
||||
Izod tester blade radius |
R=0.8±0.2mm |
||||
Charpy tester impact radius |
R=2mm±0.5mm |
||||
distance from impact blade to jaw |
22mm±0.05mm |
||||
Impact blade angle |
30°±1° |
||||
Power supply |
AC220V±10% 50HZ |
If you are interested in izod charpy impact testing machine, want to know more detailed product information, fill in the table below the direct contact with the manufacturers: |
