pipe ring stiffness tester Detailed information:

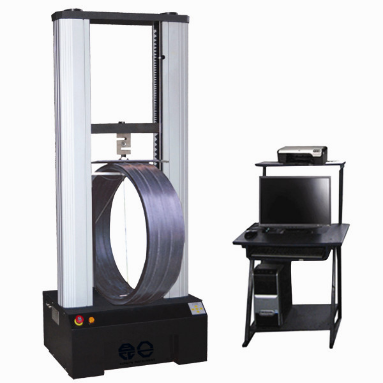

Computer Servo Control Testing Machine for Pipe Ring Stiffness
Product introduction:
Pipe Ring Stiffness Tester Bending Compression Strength Testing Machine is particularly suitable for ring stiffness, ring flexibility, creep rate and tensile test of plastic pipe especially pipe wall large-diameter structure. It meets the requirements of PE double wall corrugated pipe, wound pipe and various plastic pipe standards.
Pipe Ring Stiffness Tester Bending Compression Strength Testing Machine adapts unitary structure of the host, control, measurement. It’s combined with contemporary advanced technology, with the characteristics of large space, wide range, high precision, compact structure, convenient operation, and stable performance. It has the functions of setting storage of test parameter, test data acquisition, processing and analysis, displaying print curve, test reports and so on.
According to standard measurement of national standards, international standards or provided by users and various performance parameters of various material, the machine can count and process testing machine, and print and output the test statistics. It can do tests of tensile, compression, bending and so on by replacing fixtures.
Main Technical Specification :
Accuracy class |
|
|
|
grade 1 |
|
Maximum load |
10, 20, 50, 100, 200KN |
||
Effective measuring force range |
0.5%—100% |
||
measuring force accuracy |
within ±1% of the displayed value |
||
Test force resolution |
stepless inside and outside,and the resolution keeps unchanged the accuracy is 0.5 ‰ |
||
Displacement measurement accuracy |
within ±0.5% of displayed value |
||
Test speed |
0.01—500mm/min |
||
Test accuracy |
Difference is less than ±0.5% of displayed value |
||
Effective test diameter |
60mm---2500cm(It can be increased according to customer’s requirement.) |
||
Data sampling frequency |
200/s |
||
Motor |
Panasonic servo motor |
Applicable Standards: ISO, ASTM, EN, GB, DIN, JIS, ANSI, CSA, BS, AATCC, TAPPI, UL, VDE, IEC, CNS , etc.
