Name:Charpy impact tester

Model:CHARPY

Description:Digital Charpy impact tester it’s used to test the impact toughness of the non-metallic materials such as rigid plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials.

Charpy impact tester Detailed information:

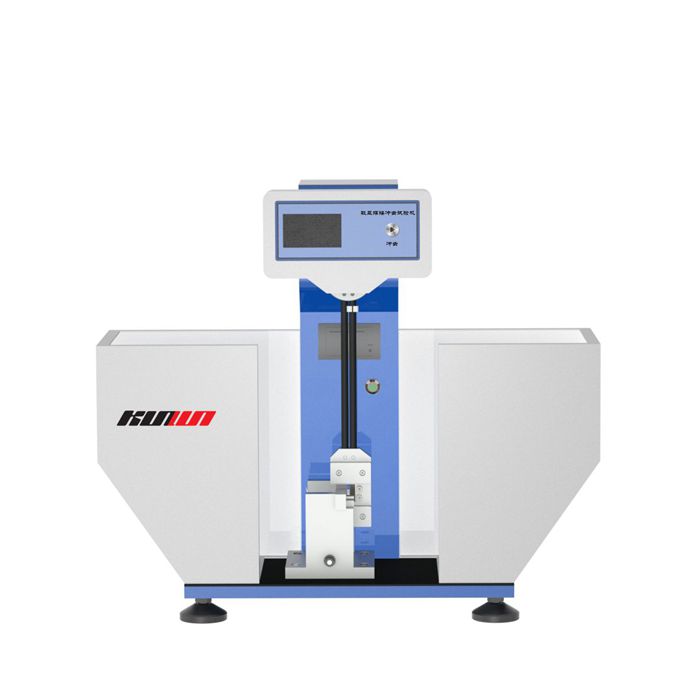

Digital Charpy impact tester



Digital Charpy impact tester Product introduction

  Digital charpy impact testing machine it’s used to test the impact toughness of the non-metallic materials such as rigid plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials. It is widely used in the scientific research institutes, universities and chemical industry as the common quality test equipment.

It’s used to test the impact toughness of the non-metallic materials such as rigid plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials. It is widely used in the scientific research institutes, universities and chemical industry as the common quality test equipment.



Plastic Charpy impact tester Performance standards



ISO179—2000  Determination of Plastics - Hard Materials Charpy Impact Strength

GB/T1043—2008  Rigid Plastic Charpy Impact Test Method

JB/T8762—1998  Plastics Charpy Impact Testing Machine

GB/T 18743-2002 Charpy Impact Test Method for Fluid Transport Via Thermoplastic Pipe (Suitable for pipe pieces)



Plastic Charpy impact tester Product features



A. High-precision intelligent controller equipped with LCD display which you can read the data  intuitively and accurately;

B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.

C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;

D. Aerodynamic impact hammer and imported ball bearings greatly reduce mechanical friction losses

E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;

F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.

G. Built-in mini printer to print the test data



Technical Specifications



Impact speed:2.9m/s or 3.8m/s;

Distance from the center of pendulum to the center of sample: 21mm, 380mm

Pendulum angle:150°

Distance from the center of pendulum to striking edge:335mm

Jaw support distance :40mm, 60mm, 70mm, 95mm

Supporting cutting edge radius:R=1mm

Angle of striking edge: 30°

striking edge radius: R=2mm±0.5mm



Specifications Option



Type

CHARPY-5D

CHARPY-15D

CHARPY-50D

Pendulum energy

1J, 2J, 4J, 5J

7.5J, 15J

25J, 50J

Pendulum angle

                        150°

Impact speed

2.9m/s

3.8m/s
