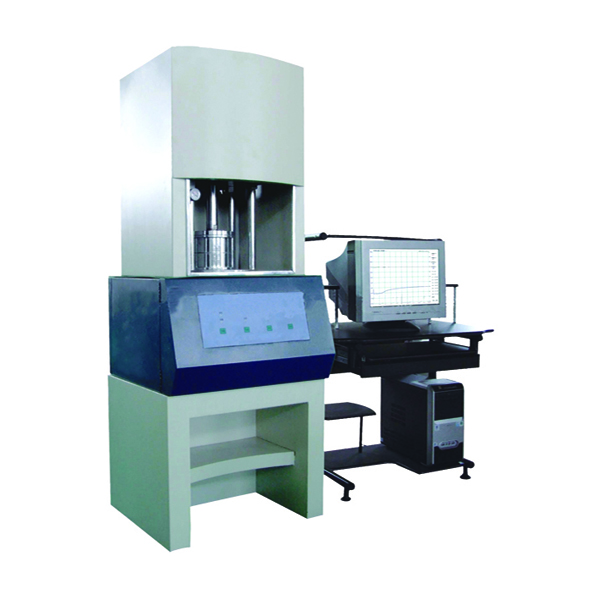

Rotorless rheometer

       Product introduction:

Rotorless rheometer is a popular advanced rubber product testing machine in home and abroad. It is mainly used to measure the features of the unvulcanized rubber, find the most suitable vulcanized time of rubber, and provide the reliable data for production process. This Rotorless rheometer is as nice shape, and is easy to operate, safe and reliable, has reasonable price, is the best choices of the rubber industry.

Technical parameter:

Product standard:ASTMD5289-95 ISO6502:1991 GB/T16584/1996

Temperature measurement time:room temperature~200℃

Heating rate:It will only take 10 minutes from room temperature to 200℃

Temperature measure precision:≤±0.3℃

Temperature control precision:  ≤±0.3℃

Temperature constancy:≤±0.5℃

Temperature resolution:0.01N.m

Mould cavity rate:1.7 Hz(100 rotate/min)

Pendulum angle:±0.5°（total amplitude is 1°）

Vulcanization time setting range:2-120min

Mould cavity dimension:Φ43

Air compression:0.5Mpa

Environment temperature:0~35℃ relative humidity <80%

External dimension:640mm×580mm×1300mm

Power supply:AC 220V±10% 50Hz

Power consumption:800W
