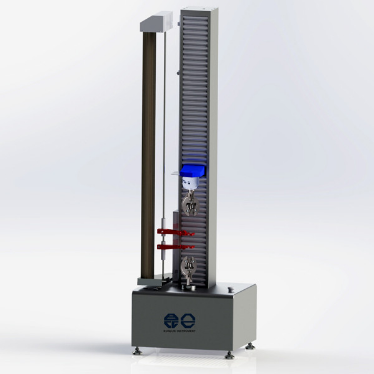

Name：universal testing machine
Model：WS5000
Description：Single-column Servo it is widely used in material tests and analysis of building materials, aerospace, machinery manufacturing, wire and cable, rubber, plastics, textiles, home appliances and other industries, which now is ideal test equipment of scientific research institutions, colleges, industrial and mining enterprises, technical supervision, inspection and arbitration department.
universal testing machine Detailed information：
Universal Testing Machine
Product introduction:
Single-column Servo it is widely used in material tests and analysis of building materials, aerospace, machinery manufacturing, wire and cable, rubber, plastics, textiles, home appliances and other industries, which now is ideal test equipment of scientific research institutions, colleges, industrial and mining enterprises, technical supervision, inspection and arbitration department.
The main technical parameters
|
Load |
1, 5, 10, 20, 50, 100, 200, 500Kg |
|
Force resolution |
1/100000~1/1000000 |
|
Force accuracy |
≤0.5％ |
|
Power magnifying multiples |
seven segment |
|
Displacement resolution |
1/1000 |
|
Displacement accuracy |
≤0.3％ (Power units : Kg, N, KN, g, lb; displacement unit: mm, cm, inch) |
|
Metal extensometer resolution |
1/1000(need negotiation) |
|
Metal extensometer accuracy |
≤0.5％ |
|
Large deformation extensometer |
±1mm(need negotiation) |
|
Speed range |
0.001mm / min ~ 1000mm / min (special speed testing can also be customized according to customer requirements) |
|
Walking space |
1000mm (Holder is included and special test space can also be customized according to customer requirements) |
|
Test Width |
400mm (special test width can be customized according to customer requirements) |
|
Power supply |
∮220V 50HZ or using 110V power supply according to customer requirements |
|
Machine Size |
about 500 × 500 × 1800 mm (L × W × H) |
|
Machine weight |
about 250KG |
